Finch West LRT Station

Location:

Toronto, ON

System:

LITEFLAM

Sector:

Transportation

DESIGN GROUP:

owner:

Contractor:

Year:

2025

Download Case study

About

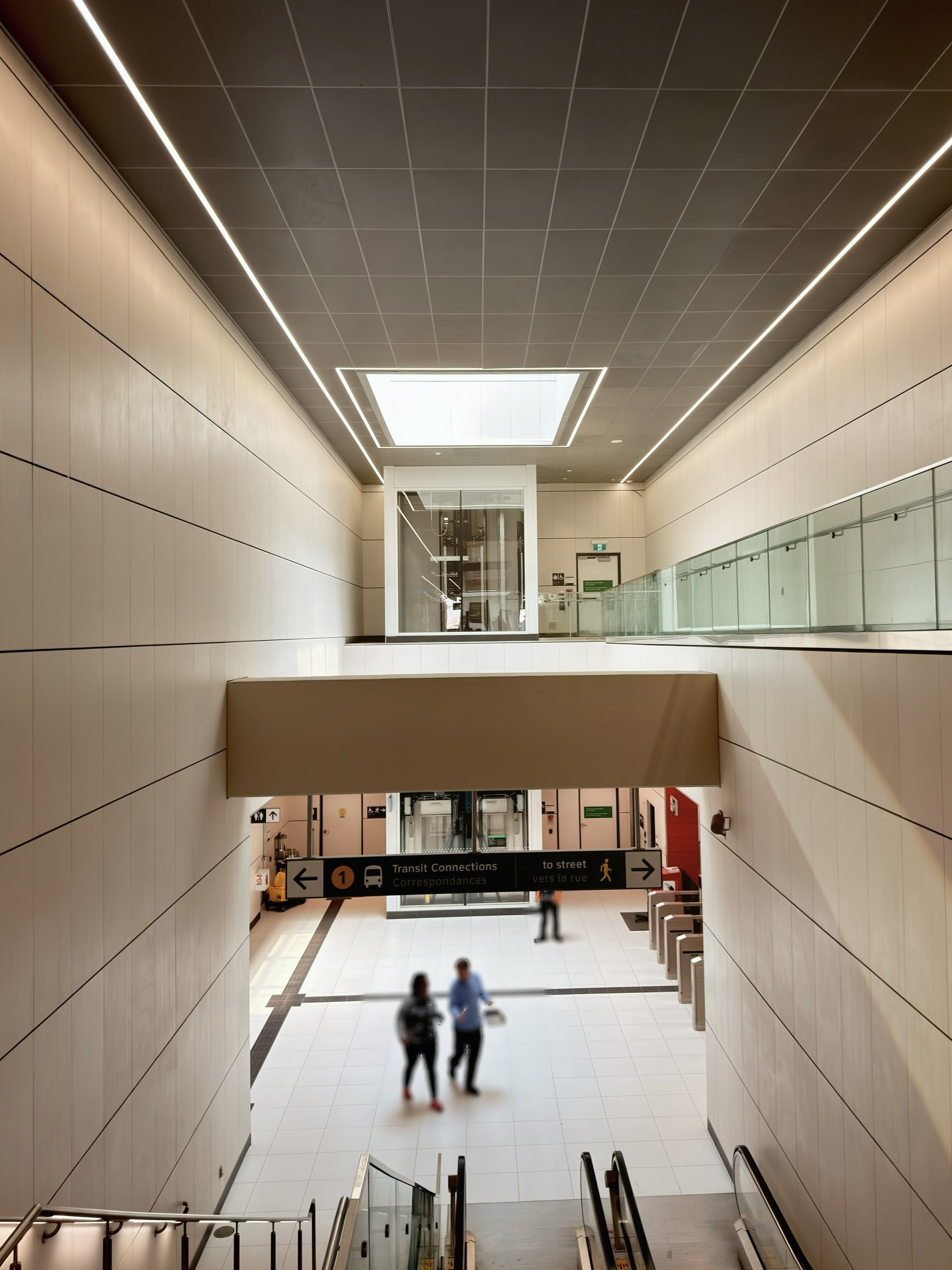

Finch West LRT Station

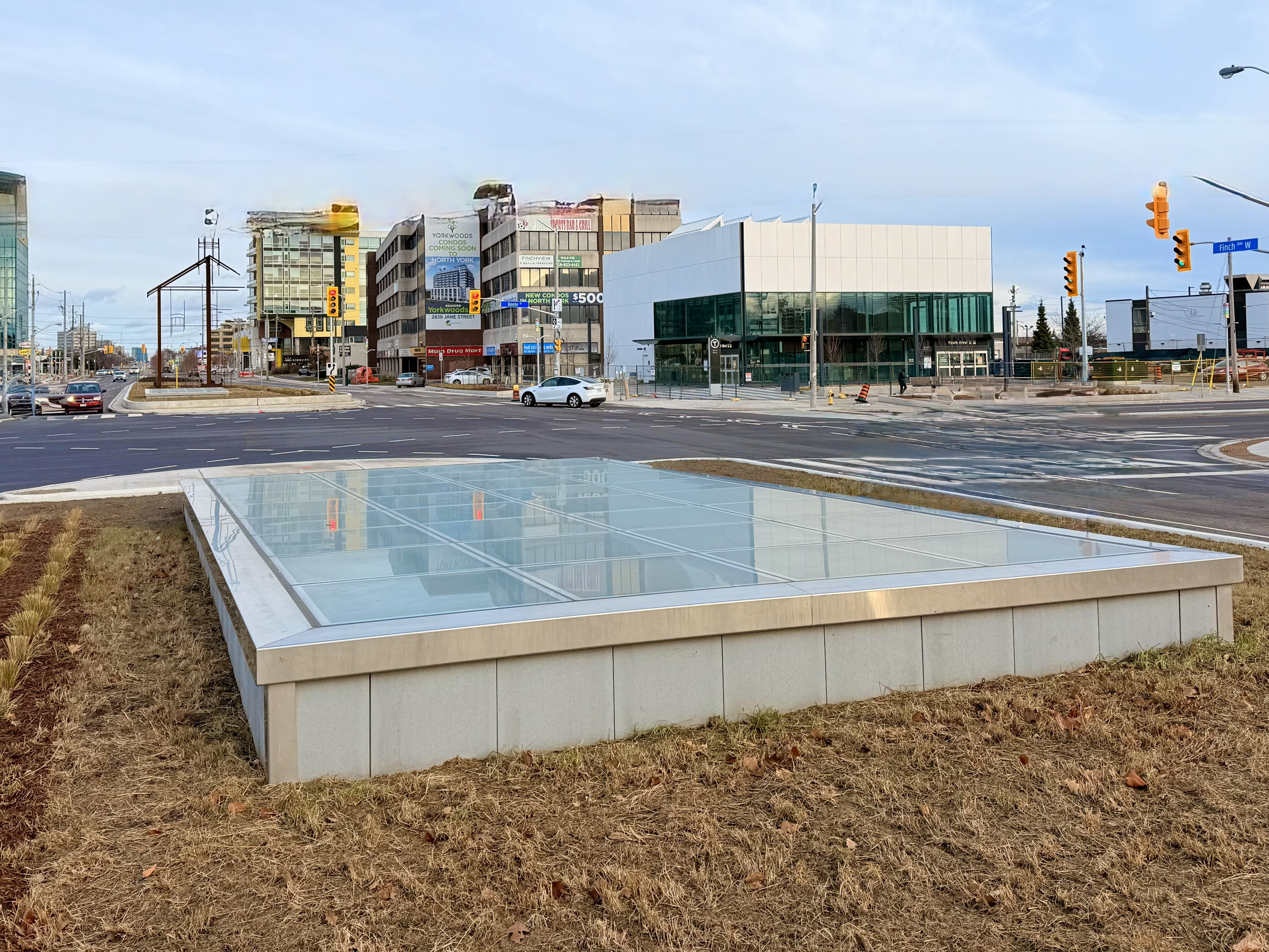

As part of Toronto’s expanding transit infrastructure, this project required a specialized glazing solution that could combine transparency, accessibility, and safety within a high-traffic urban environment. The LITEFLAM XT 60 exterior walkable skylight was engineered to provide 60-minute fire resistance, pedestrian loading capacity, and impact protection, delivering a durable and high-performance solution for the Finch West LRT Station.

PROJECT CHALLENGES

Exterior Walkable Fire-Rated Skylight LITEFLAM XT 60

Engineer an exterior walkable skylight capable of withstanding potential vehicle impact within a busy roadway environment.
Achieve a 60-minute fire rating combined with impact resistance in a single assembly.
Balance fire resistance, structural capacity, pedestrian loading, and impact performance in one integrated system.

Project SOLUTION

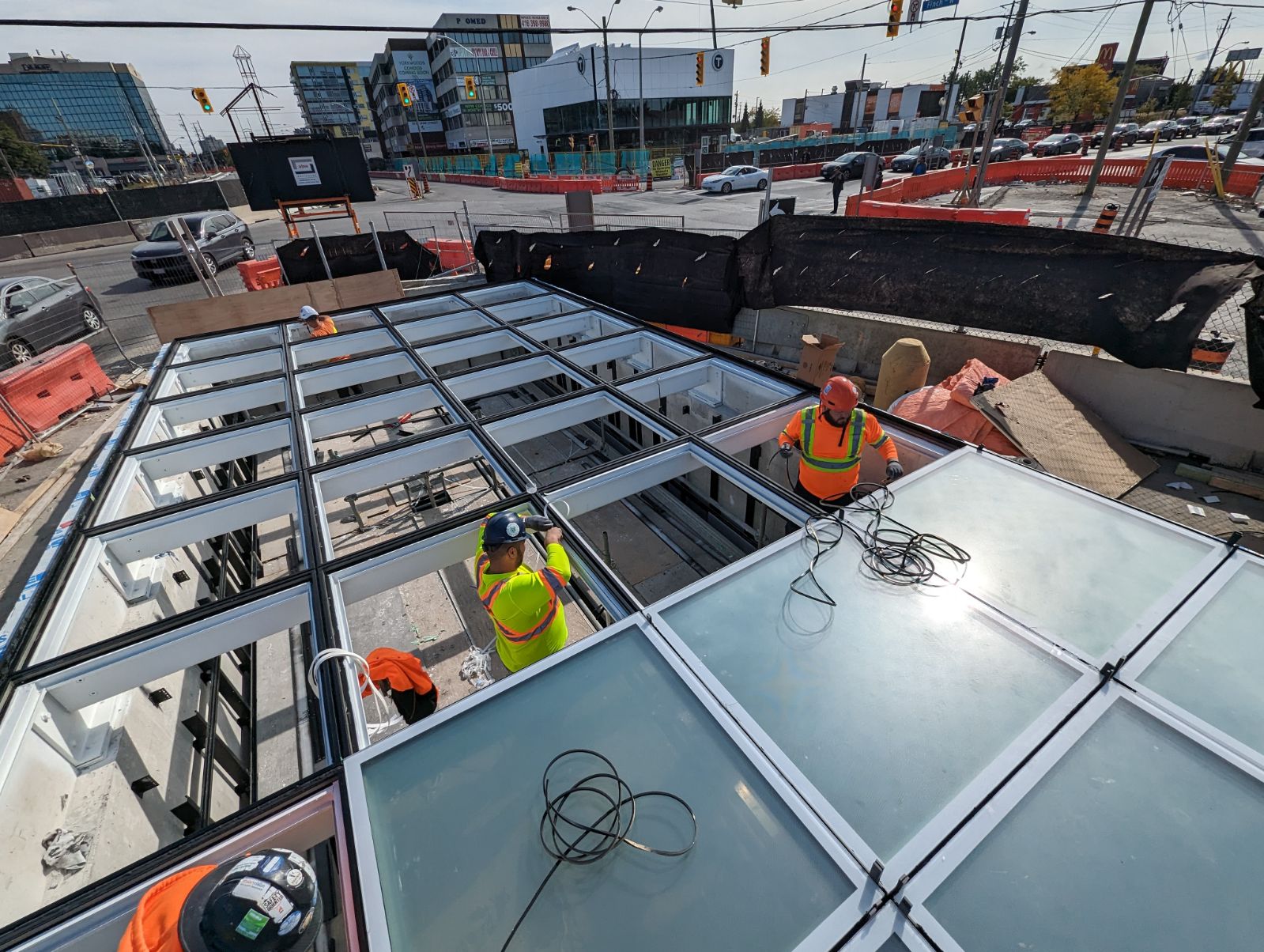

LITEFLAM XT 60 Exterior Walkable Fire-Rated Skylight with Impact Resistance

The LITEFLAM XT 60 system was engineered to meet the multi-criteria demands of this transit application.
Beyond the 60-minute fire rating and pedestrian load requirements, the assembly was designed to incorporate impact resistance to address the unique risk of vehicle strike — ensuring the skylight would not experience catastrophic failure under impact forces.

PROJECT ACHIEVEMENTS

Engineered for Complex Transit Applications

Successfully combined fire resistance, impact resistance, pedestrian loading, and structural capacity in a single exterior assembly.
Addressed the unique safety demands of a transit station situated within an active roadway environment.
Delivered a multi-criteria engineered solution for one of Toronto's major transit infrastructure projects.
