Provides protection for up to 120 minutes, blocking flame, smoke, radiant heat.
Composed of multiple glass layers bonded with a strong interlayer, it prevents shattering, enhancing safety by holding together even if broken.
Offers a customizable non-slip surface, reducing slip risks in wet or high-traffic conditions, prioritizing pedestrian safety.
Available in double & triple glazed (IGUs) to improve thermal performance, maintaining comfortable indoor temperatures and reducing energy costs.
Built to withstand wear and tear, LITEFLOOR maintains performance and appearance over time, ideal for long-term installations.
Provides a modern, elegant look with clean lines for new construction and retrofit, elevating the visual appeal of any space.

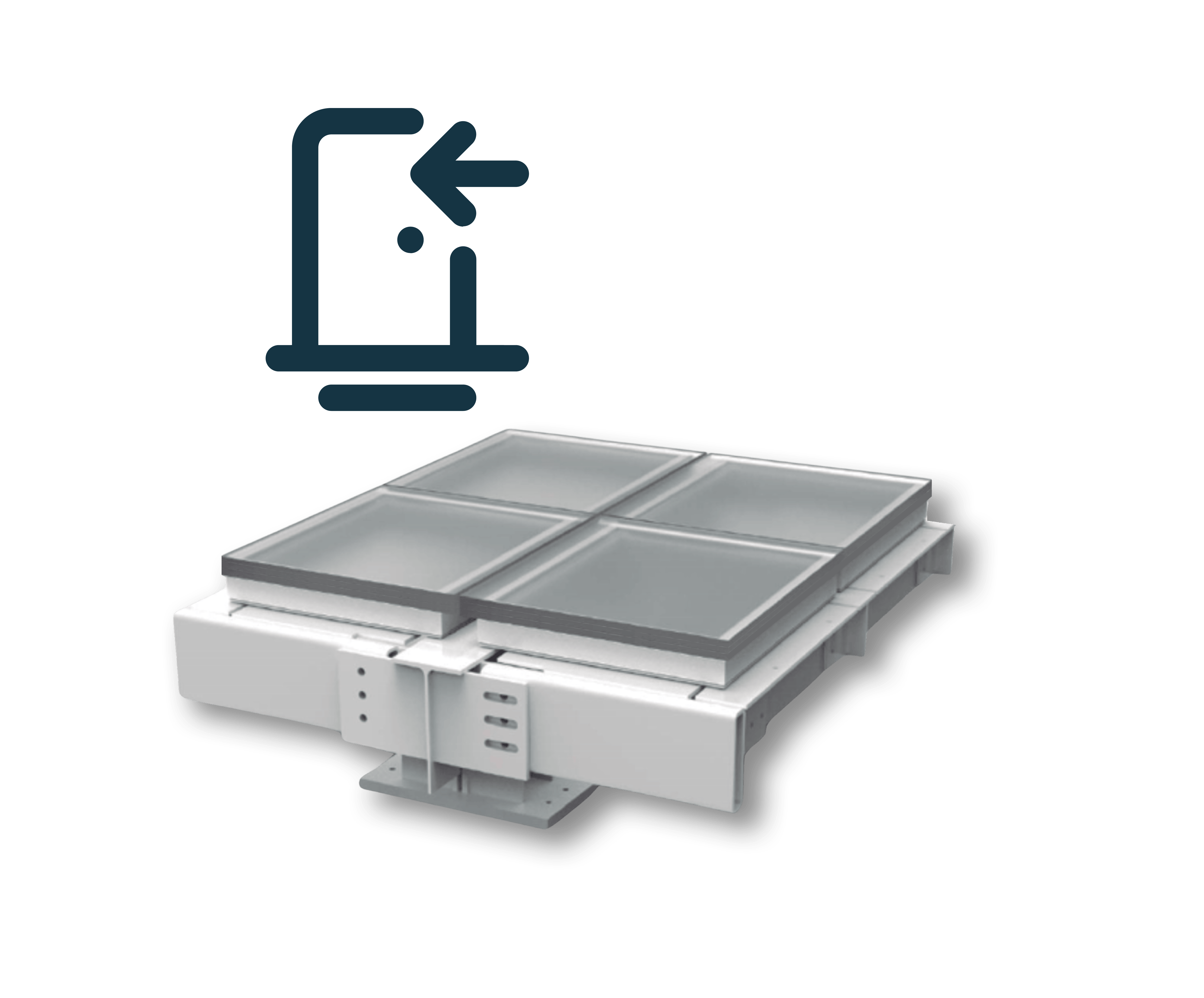

LITEFLOOR Interior is a non-fire-rated glass flooring system engineered for indoor spaces where safety, durability, and design are paramount. Perfect for residential and commercial projects. This system leverages its high load capacity to support bustling interiors while maintaining a sleek, transparent aesthetic that enhances daylighting. The laminated safety construction ensures that even under impact, the glass remains intact, offering peace of mind in busy areas like lobbies or galleries.
Impact Safety Rating: CPSC 16 1201 (CATEGORIES I & II)
Tested Slip Resistance: ASTM F1679-00/ ANSI A326.3
Nominal Glass Thickness (in.; mm): 1 1/4" (32mm)
Thickness Tolerance (in.;mm): +1/8” to -1/16” (+3mm to -1.5mm)
Weight (lbs/sqft; kg/sqm: 15 lbs/sqft; 73.5 kg/sqm
Standard Live loading 100 PSF: Optional higher loading available

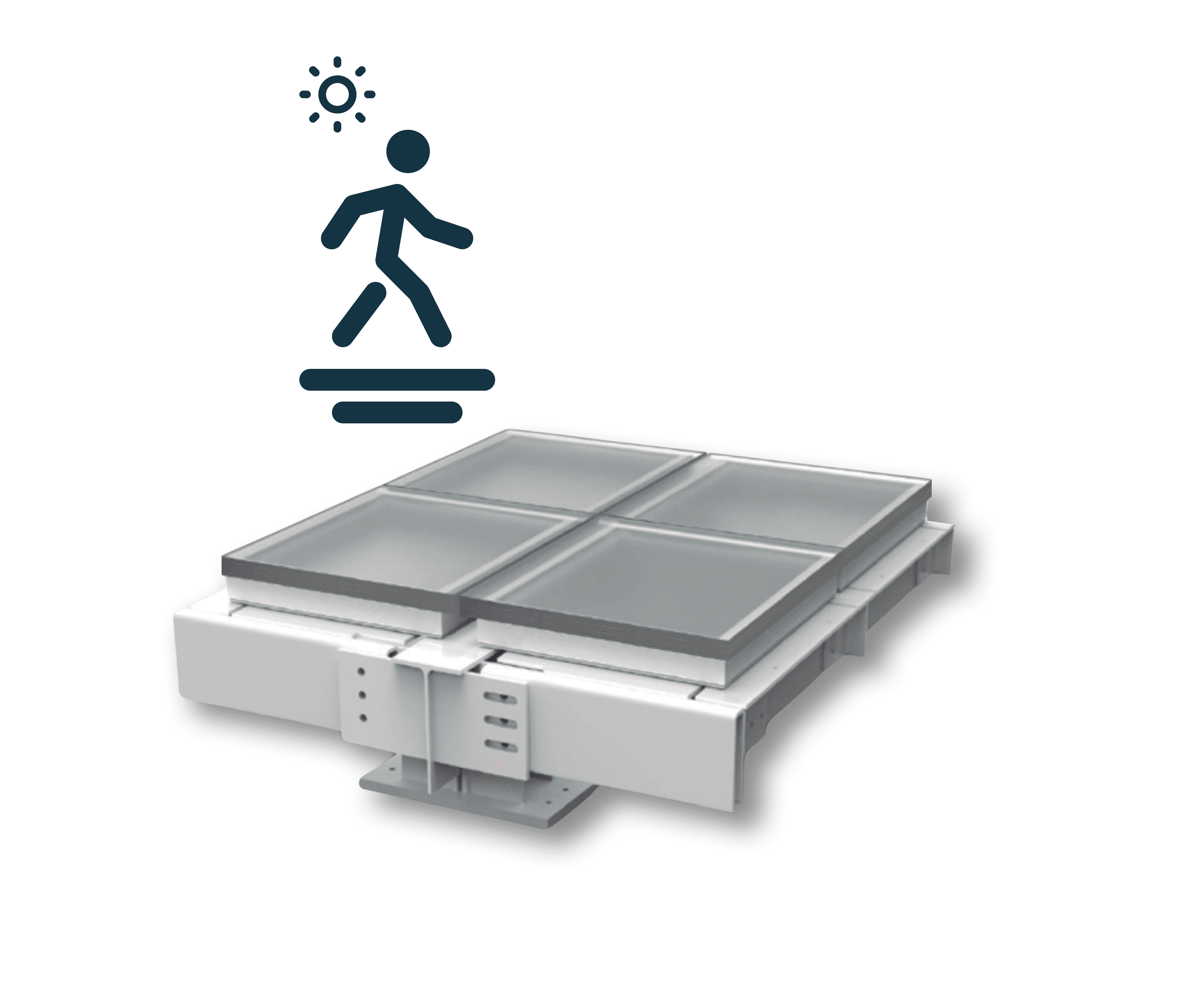

LITEFLOOR Exterior is a non-fire-rated solution designed for outdoor walkable surfaces, blending durability with sophisticated design. Tailored for terraces, balconies, or pedestrian bridges, it features an insulated design with insulated glass units (IGUs) to combat weather-related heat loss, ensuring energy efficiency in exposed areas. Its high durability withstands environmental wear, from rain to UV exposure, while the optional slip-resistant finish provides critical safety on wet surfaces, making it ideal for rooftop patios or garden walkways.
Impact Safety Rating: CPSC 16 1201 (CATEGORIES I & II)
Tested Slip Resistance: ASTM F1679-00/ ANSI A326.3
Nominal Glass Thickness (in.; mm): Double Glazed: 2-3/4” (70 mm) Triple Glazed: 3-1/8" (80 mm)
Thickness Tolerance (in.;mm): +1/8” to -1/16” (+3mm to -1.5mm)Weight (lbs./sqft. ;kg/m )
Double Glazed: 21lbs/sqft; 102 kg/sqm
Triple Glazed: 23-25 lbs/ sqft; 112- 122 kg/sqm
Standard Live loading 100 PSF: Optional higher loading available

While both are walkable glass systems, LITEFLOOR is a high-performance laminated safety glass system designed specifically for applications where fire ratings are not required. In contrast, LITEFLAM is engineered to provide fire-resistive protection (blocking flames, smoke, and heat) for 1 to 2 hours. LITEFLOOR focuses purely on structural durability, aesthetics, and impact safety for non-fire-rated zones.
Yes. LITEFLOOR IGU Exterior is specifically engineered for outdoor walkable surfaces such as terraces, balconies, and pedestrian bridges. This system features an insulated design—available in double or triple glazed units—to improve thermal performance and combat heat loss or gain, making it suitable for exposed environments.
LITEFLOOR is engineered to handle heavy foot traffic and extreme loads. The system has a standard live loading capacity of 100 pounds per square foot (PSF). However, it offers optional higher loading capabilities if a project demands it, ensuring structural stability under heavy use.
Safety is a priority, and LITEFLOOR offers optional slip-resistant finishes. The surface can be customized with a non-slip frit or pattern to reduce the risk of accidents in high-traffic or wet conditions. For example, the TransLink Lonsdale Bus Loop project utilized a clear microdot non-slip pattern to ensure passenger safety on oversized skylights.
LITEFLOOR is composed of laminated safety glass, consisting of multiple layers of glass bonded together with a strong interlayer. This construction ensures that if a layer breaks, the glass does not shatter; instead, it holds together to maintain safety and structural integrity. It meets CPSC 16 1201 (Categories I & II) impact safety ratings.
Yes. The exterior system is built for high durability against environmental wear, including rain and UV exposure. A notable example is the 201 Portage Plaza in Winnipeg, where LITEFLOOR Exterior DGU was installed to withstand harsh winter conditions with temperatures dipping to -30°F while providing a safe, non-slip walkable surface.
The thickness depends on the application. LITEFLOOR Interior typically has a nominal glass thickness of 1-1/4” (32 mm). The LITEFLOOR IGU Exterior is thicker to accommodate insulation: Double Glazed units are approximately 2-3/4” (70 mm), and Triple Glazed units are 3-1/8" (80 mm).
The system is designed for a secure and efficient installation process where the glass panels are installed from above. This method streamlines the construction process for both new builds and retrofits.
